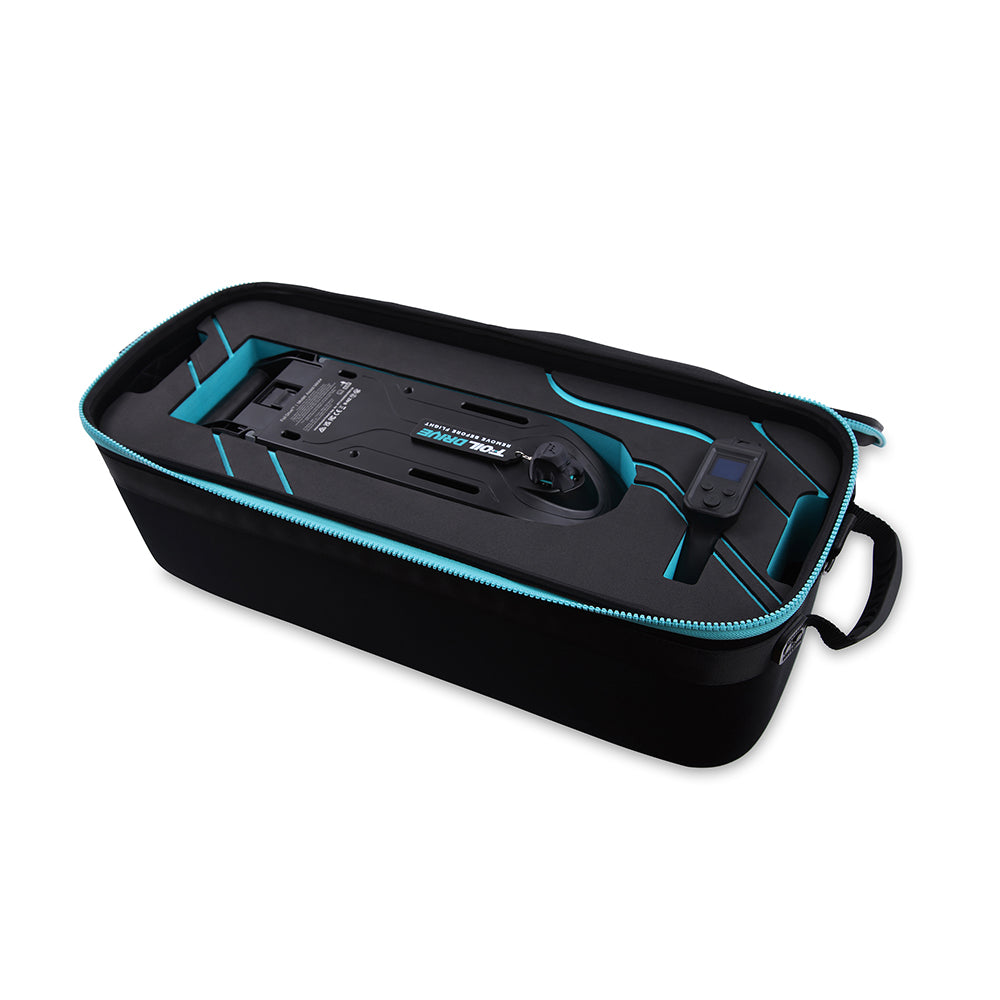

Foil Drive Assist MAX+ Base Kit in carry case

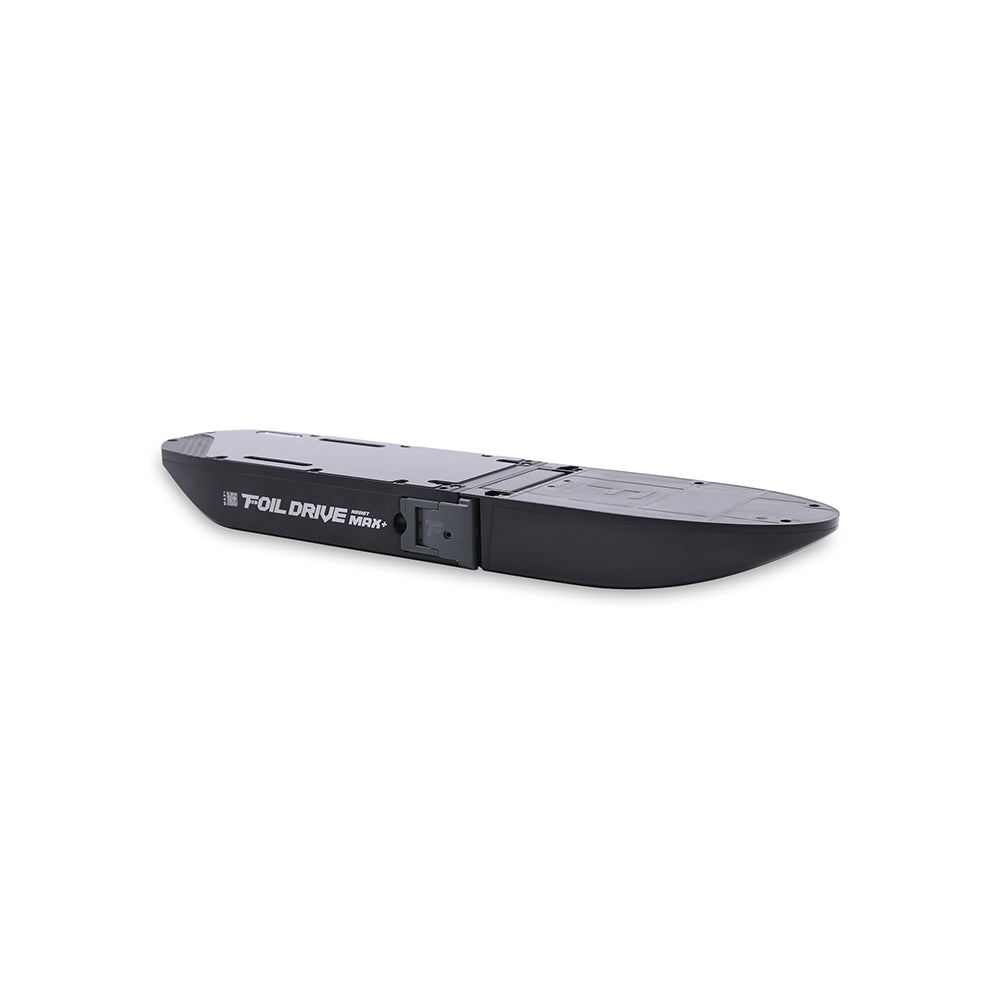

Foil Drive Assist MAX+ unit underside

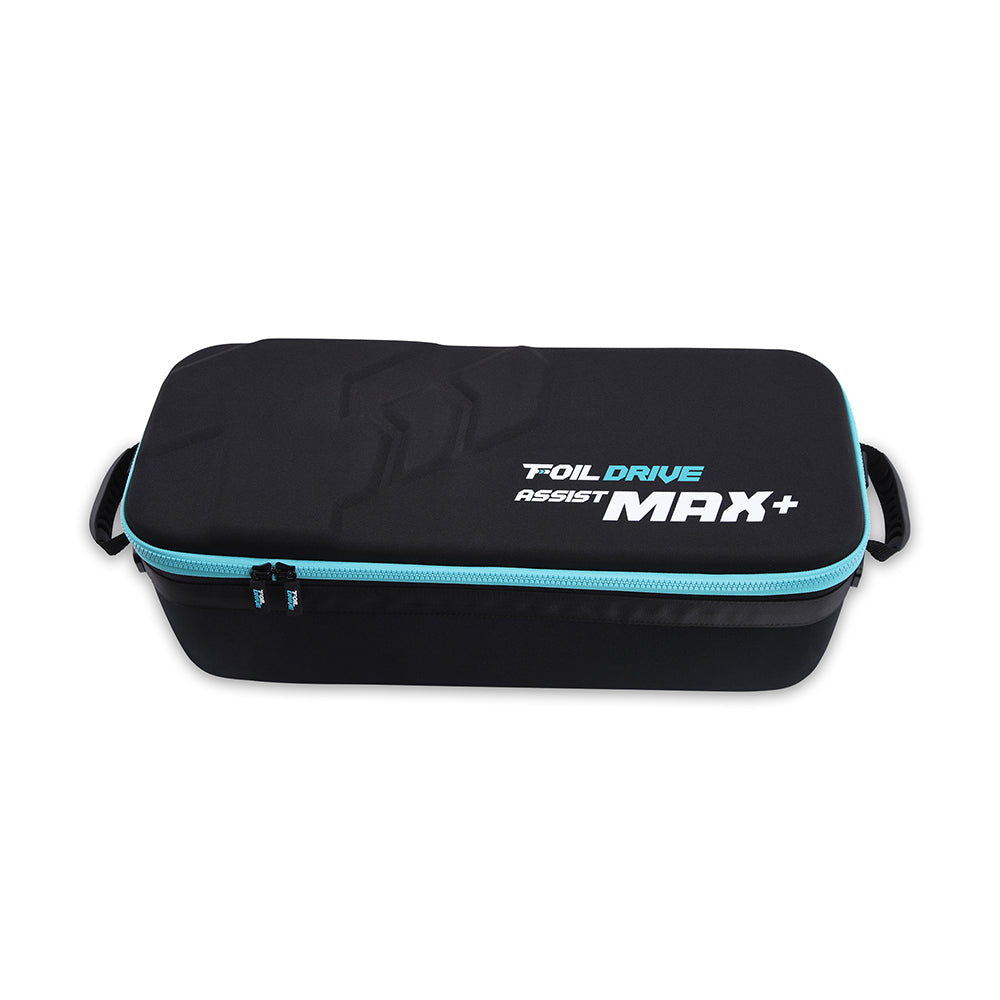

Foil Drive Assist MAX+ carry case closed
Foil Drive Assist MAX+ in action
Foil Drive Assist MAX+ in action
Foil Drive Assist MAX+ Base Kit in carry case
Foil Drive Assist MAX+ unit underside
Foil Drive Assist MAX+ carry case closed
Foil Drive Assist MAX+ in action
Foil Drive Assist MAX+ in action
Stonker Boardsports: Your Foil Drive Specialists

Foil Drive Assist MAX+ Base Kit

$5,601.20
/
Tax included.

Everything you need to build your Assist MAX+ — except the motor and battery.

The Assist MAX+ Base Kit is the core of Foil Drive's new Gen 2.5 system, letting you choose your own motor and battery combination. It's ideal if you already own a compatible V2 motor, want to spec a custom setup, or are upgrading from an earlier Foil Drive unit.

Built on the same proven 43V power, tech and charging architecture as the Fusion, the MAX+ delivers more thrust, more runtime and tilt-safety cut-off features, while keeping the compact, lightweight and balanced package that made the original MAX so versatile.

What's Included

  • Foil Drive MAX+ (in case)
  • V3 Controller with Bump Guard installed
  • 43V Standard Charger 12amp
  • 4x Titanium T40 M7 Split Bolts (Silver)
  • Controller Accessories Case: USB-C Charge Pad and Cable · Bump Guard Variation · Wrist Leash · 1.5mm Allen Key for Bump Guard Removal
  • Tools & Hardware: T40 Driver · T30 Driver · 2.5mm Black Titanium Driver · Pick Tool · 2x 15g Battery Grease · 2x Nose Cone Rocker Pads · 3x M4 10mm Titanium Motor Plug Bolts · Anode Replacement Kit · Replacement Electronics Box O-Ring (Blue) · Replacement Motor Cable O-Rings (Blue & Red) · Microfibre Towel
  • Other: 2x Mast Foam Track Guides · Tool Caddy (inside MAX+) · Sticker Pack · User Manuals

Does not include: Motor or Battery. Pair it with an FM+ 650 Battery and your choice of V2 Standard or High Power motor.

Tech Specs (with FM+ 650 Battery)

  • System Voltage: 43.2V
  • Battery Capacity: 648Wh (FM+ 650)
  • Max Thrust: 35.5kg
  • Peak Power (Boost): 2150W
  • Sustained Power: 1750W
  • Dimensions with Battery: 540 x 125 x 55mm
  • App Compatibility: Foil Drive App, Android and iOS
  • Water Rating: IP68 Water and Dust Resistance
  • Certified: UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

Compatible With

FM+ 650 Battery · FM+ 430 Battery (coming soon) · 43V Foil Drive Charger · V2 High Power Motor · V2 Standard Motor · V2 Controller · V3 Controller

Important: existing 40V Assist MAX batteries are NOT compatible with the MAX+ 43V system.

Not sure which motor or battery to pair with? Give us a call on 03 5261 8877 — we're happy to help you build the right setup.
